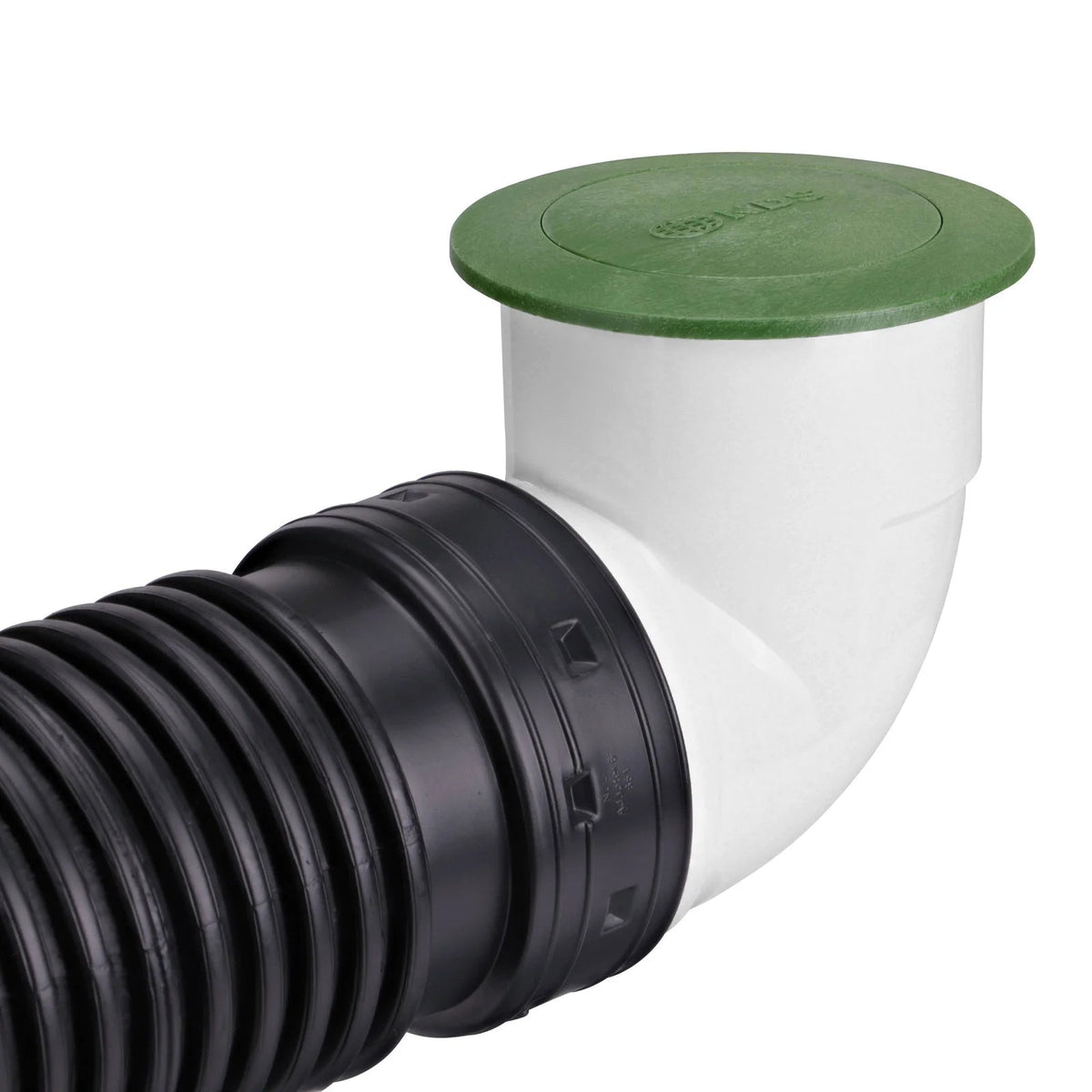

NDS Pop-Up Drain Emitters With 90 Degree Elbow

NDS

SKU: 16142671

Available Inventory: 5

$18.49
Unit price per

Options

Water captured in your drainage system needs a point of release. The pop-up emitter works at a low point of the drainage system to discharge water collected from upstream and helps protect property from water damage. As water pressure builds, the cap pops up to disperse water and closes once the flow diminishes.

Key Features

Pop-up emitter cover consists of a spring-loaded cap and wide flange to prevents turf overgrowth
Engineered crossbar design underneath helps maximize flow while flushing out debris
Molded-in crossbar geometry along with internal ribs provide exceptional durability; supports pedestrian traffic including lawn tractors when properly installed
Available in a variety of sizes and configurations: 3 in., 4 in., 3 in. & 4 in., 6 in., with adapter, with elbow
Use with an elbow and weephole to drain residual water and help prevent stagnation and potential freezing of residual water

Applications

Install the pop-up drainage emitter at the lowest point in the drainage system
Place in areas away from buildings and landscapes, away from the curb
Works with a complete drainage system to release collected stormwater runoff and standing water to a discharge point before it causes costly property damage

Installation & Maintenance

Position pop-up emitter cover at or below ground level
Extend the lifespan with routine inspections; a clogged pop-up emitter can potentially back up the entire drainage system
Cut and remove turf mat away from the base flange
Clear debris from cover and cap; check drain pipe underneath and remove debris

Materials & Sustainability

Cap and cover made of high-density polyethylene (HDPE); adapter made of HDPE
Elbow made of polyvinyl chloride (PVC)
Pop-up emitters are made in the USA
